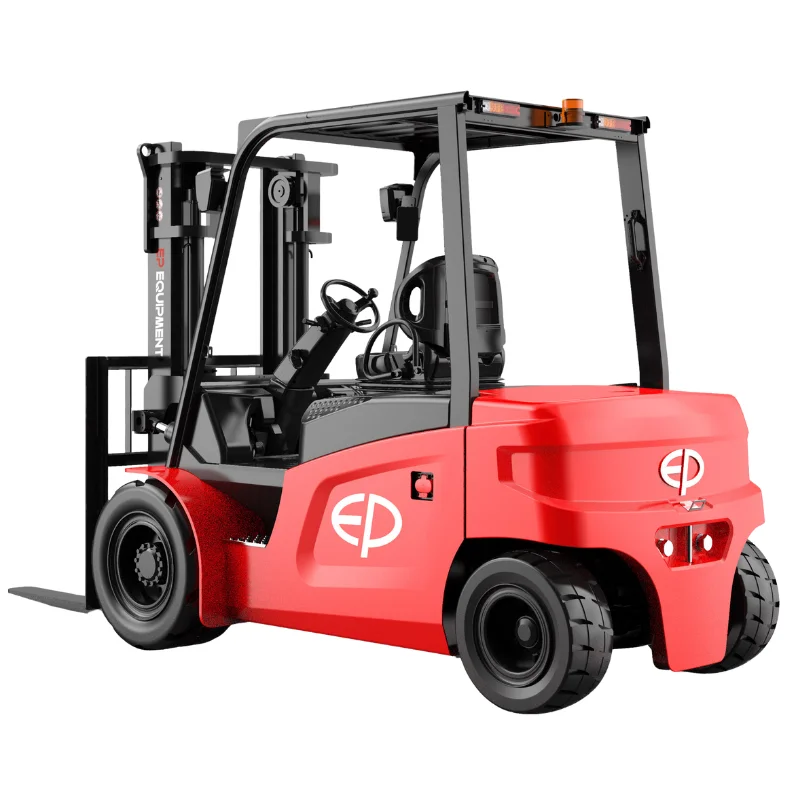

CPD50L1

4-wheel Li-ion Counterbalance forklift 5.0T


5000 kg

6000 mm

80 V Li-Ion

The CPD50L1, an upgraded version of EP’s iconic heavy-duty forklift truck CPD50F8, is designed to meet the evolving demands of modern intralogistics applications. This electric forklift combines aesthetics with functionality, offering an efficient solution for various industries.

Features

The new design of the CPD50L1 reflects both practicality and beauty. The internal lay-out has been optimized, resulting in shorter l2 of 2900mm and a tighter turning radius of 2675mm. The compact size makes it easy to maneuver in confined spaces. The bolted overhead guard offers maximum flexibility for retrofit or replacement and the height of 2250mm combined with triplex 4,5 meters elevation allows for goods transportation in standard containers.

The CPD50L1 offers two lithium battery options, 80V/560Ah and 80V/690Ah, to meet regular and intensive applications. It is designed around the advantages of lithium technology - opportunity charging, zero maintenance, zero carbon emissions and zero gas emissions during charging, which contributes to convenient and sustainable operation. The practical IP65 external plug provide charging convenience without the need to open the cover.

Compared to the classic CPD50F8, the travel speed of the CPD50L1 is improved to 16/18km/h, speeding up warehouse turnover and increase transport efficiency.

The CPD50L1 can be fitted with hydraulic joystick controls instead of mechanical levers. Positioned at the end of the armrest, fingertip operation is possible, improving the operator ergonomics with the following controls: all fork hydraulic control including the 4th way, driving direction (F-N-B), horn, emergency stop button.

The CPD50L1 inherits mature components, such as drive unit, motors, controllers and mast, ensuring great reliability. The box girder structure is more rigid granting higher stability and the new hydraulic pump makes the lifting operation more precise and quiet.

The seat height (h7) is 1208mm from the ground, lower in its category. This makes it easy for the driver to get in and out.

CPD50L1 Application

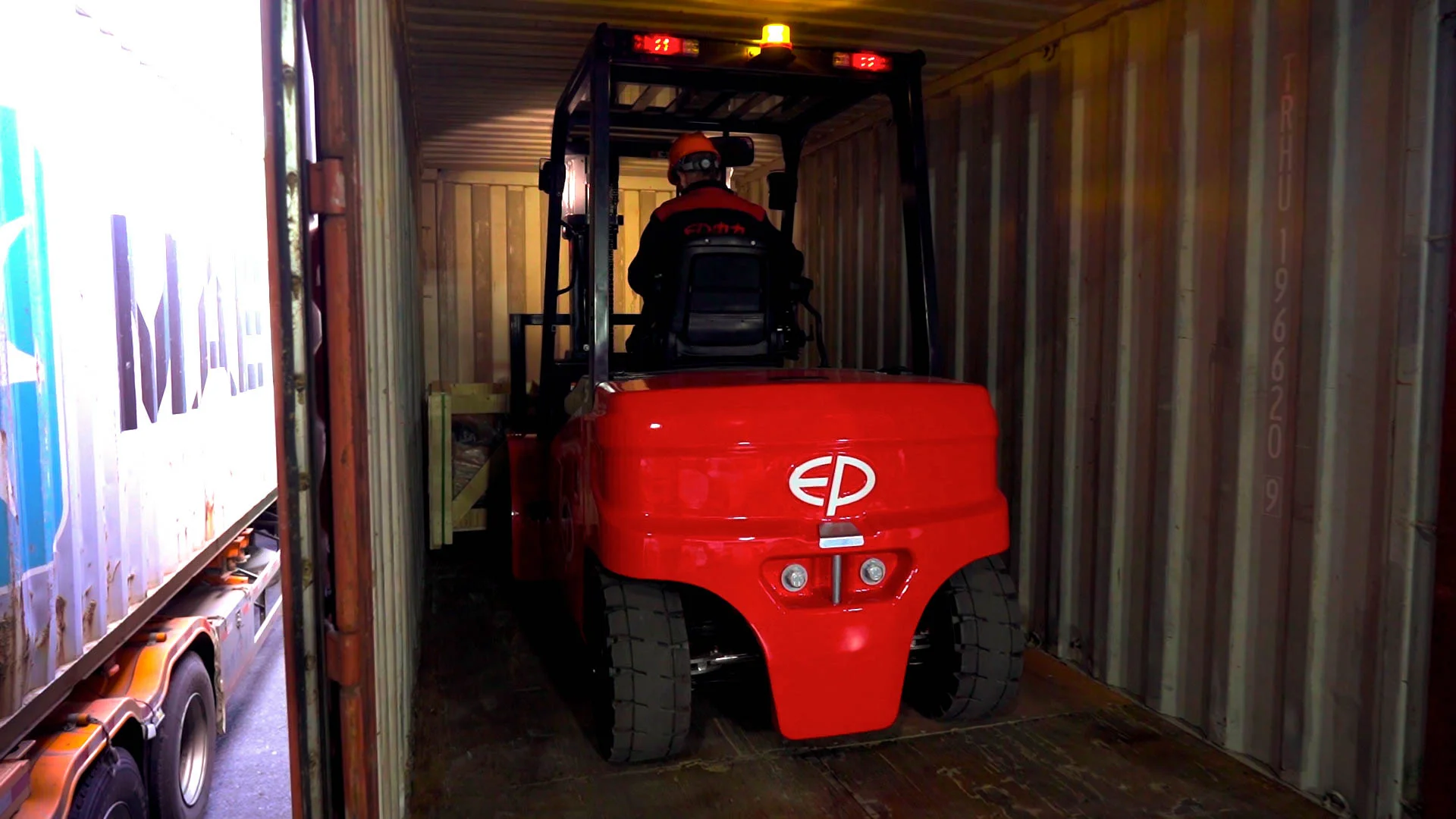

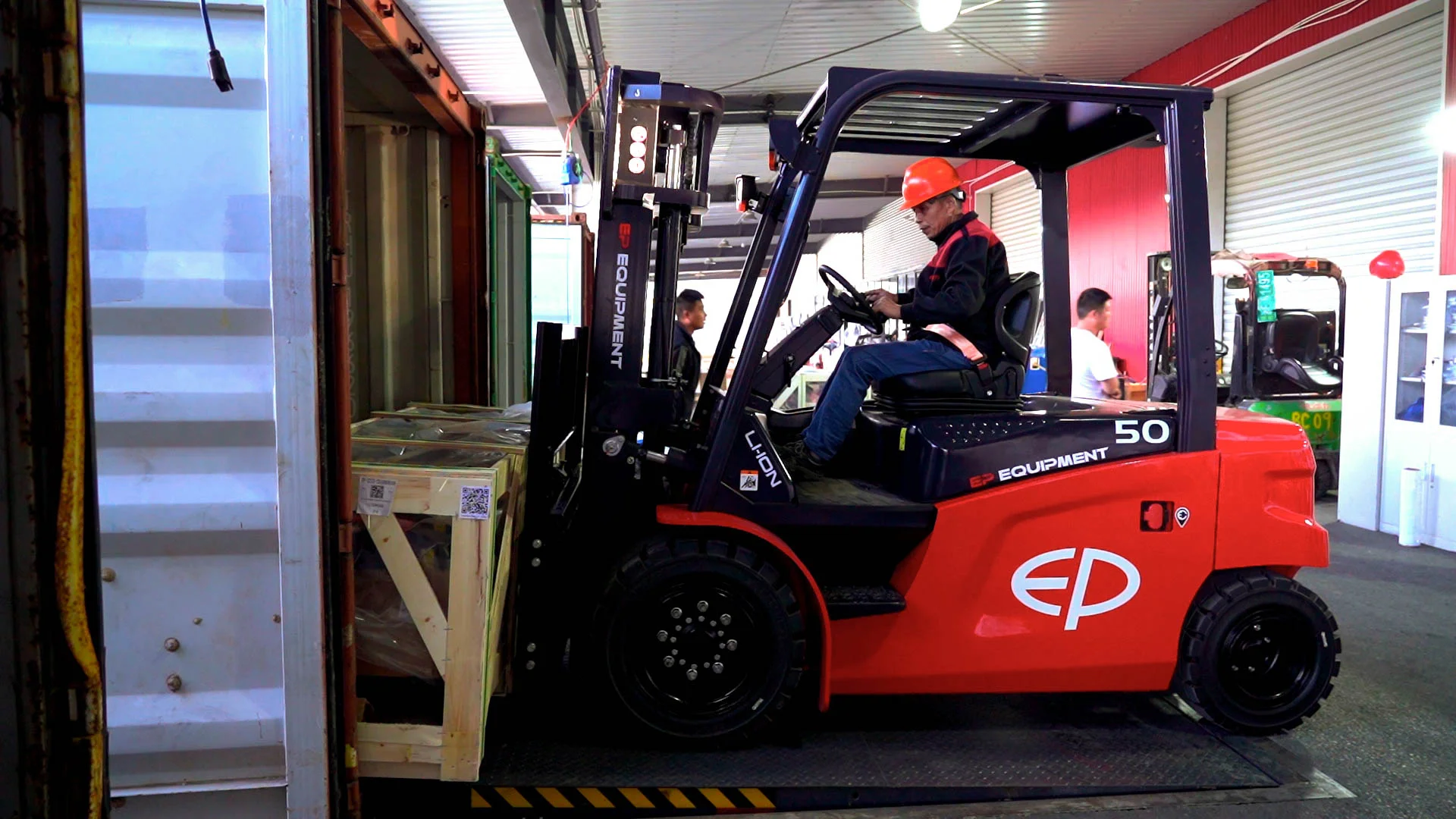

The CPD50L1 counterbalance forklift is suitable for heavy duty, even the most demanding applications, thanks to the various lithium battery options and the improved travel speed. It can deliver great performance to various industries, such as beverage, wood, metal, construction and others. For handling materials in containers, the CPD50L1 with a dedicated mast can fully meet the need due to its proper overhead guard height of 2250mm.

Datasheet

Description

About the CPD50L1

Optimized Design: Shorter length to face of forks and a high, 2250mm bolted overhead guard for practicality and aesthetics.

Powerful Battery: Comes standard with an 80V/560Ah lithium battery and an optional 80V/690Ah battery for intensive work. Enhanced Maneuverability: Improved travel speed for efficient turnover and a joystick option for comfortable, palm-sized operation.

Versatile Application: Ideal heavy duty forklift for demanding applications in beverage, wood, metal, construction, and more. Suitable for container handling with a dedicated mast. Compact and Agile: Shorter l2 of 2900mm and a tight turning radius of 2675mm make it easy to maneuver in confined spaces.

Safe and Secure: Bolted overhead guard offers flexibility for retrofit or replacement, ensuring safe transportation of goods in standard containers.

Additional information

Application

, , , , , , , , ,

Battery Voltage

Charging Type

Fast Charging, Opportunity Charging
Lift Height

Load Capacity

Operator Position

FAQs

Everything you need to know about this equipment before making a decision.

The CPD50L1 offers a robust 5,000 kg load capacity at a 500 mm load center, making it ideal for demanding material handling applications. Its durable design and high ground clearance ensure reliable performance across indoor warehouses and outdoor yards.

The standard mast provides a 3,000 mm lift height, while optional configurations can reach up to 6,000 mm. The low overhead guard height of 2,250 mm allows smooth operation inside shipping containers, and the dedicated triplex mast ensures stable and precise lifting at any height.

Powered by EP’s advanced 80V lithium-ion battery, the CPD50L1 is available in 560Ah or 690Ah options to suit standard or intensive operations. The battery supports opportunity charging and is completely maintenance-free and emission-free, ensuring long autonomy and eco-friendly operation. A protected IP65 external plug enables quick, convenient charging without opening the cover.

Despite its high capacity, the CPD50L1 has a short truck length of 2,900 mm and a tight turning radius of only 2,675 mm. This compact layout allows smooth handling in confined warehouses or loading docks, while the high ground clearance and large solid tires deliver strong traction on uneven surfaces.

The CPD50L1 is designed around operator comfort and efficiency. It features a low 1,208 mm seat height for easy entry, an ergonomic adjustable seat, and optional hydraulic joystick controls for smooth, fatigue-free operation. Combined with quiet hydraulic systems and improved travel speeds of up to 18 km/h, it ensures a productive, comfortable, and safe working environment.
