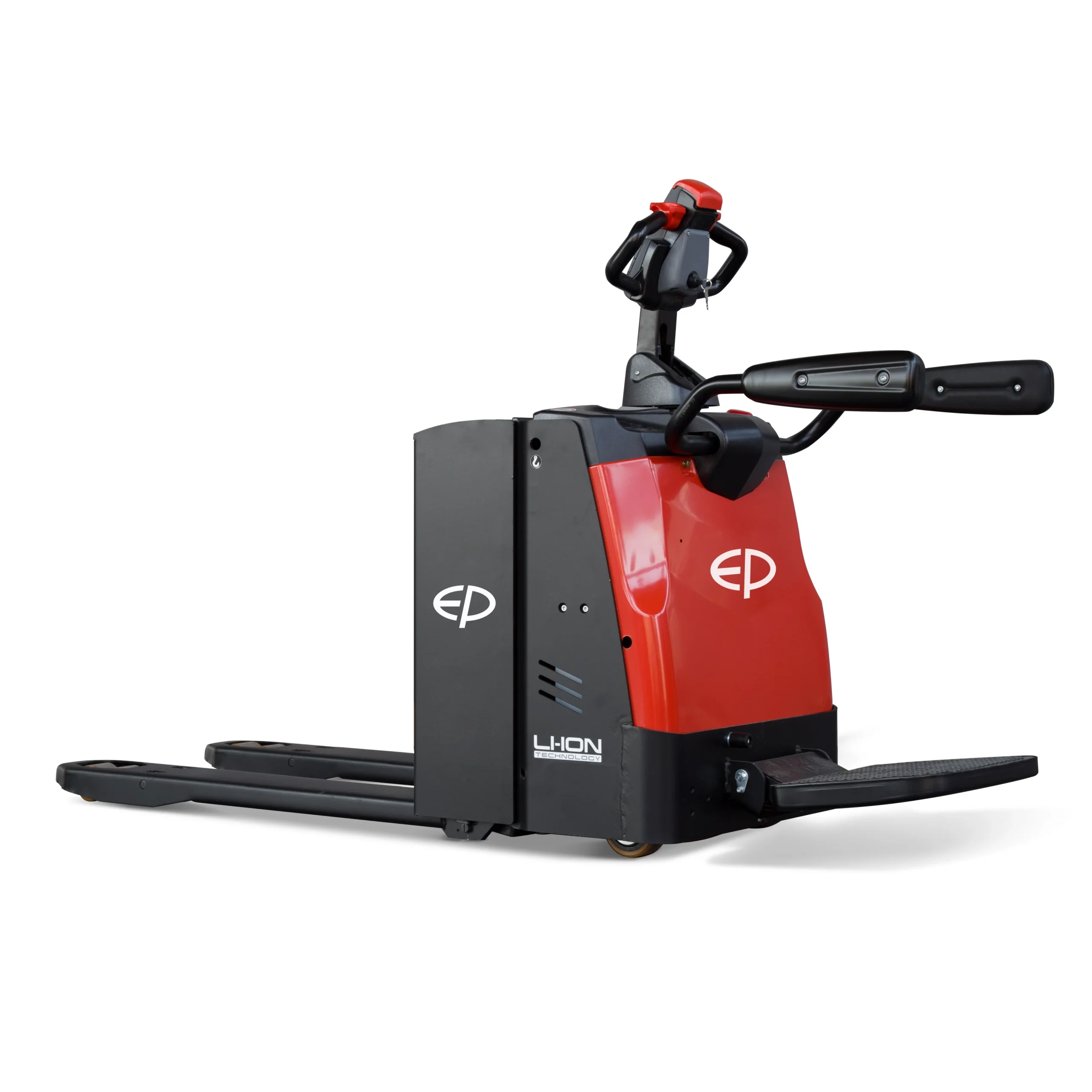

Heavy-Duty Ride-On Pallet Truck H 2.0T


2000 kg

120 mm

24 V Li-Ion


Designed for intensive applications, the RPL201(H) offers a 2000 kg load capacity with a 1806 mm turning radius. Its 24V/205Ah Li-ion battery with external charging plug supports fast, opportunity charging, reducing downtime in multi-shift operations. The high-speed version increases efficiency in long-distance transport, while proportional steering and automatic cornering speed reduction improve safety.

Features

The RPL201(H) offers a high-speed option that improves productivity in large warehouses and logistics hubs. This enables operators to transfer pallets faster without sacrificing safety or control.

Powered by a 24V/205Ah maintenance-free Li-ion battery, the truck supports rapid and opportunity charging through an external plug. This eliminates downtime and maximizes productivity across multi-shift operations.

Features like automatic cornering speed reduction, stabilizing wheels, and optimized counterweight placement provide excellent travel stability and safer operation at higher speeds.

Equipped with a suspended foldable platform, protective sidearms, and ergonomic proportional steering, the RPL201(H) prioritizes operator comfort during long-distance transport. These features help reduce fatigue and improve overall efficiency.

The RPL201H is designed for fast and efficient horizontal transport across large warehouses and distribution centres, helping improve productivity during intensive multi-shift operations.

Built with a robust chassis and heavy-duty components, the RPL201H delivers dependable performance in demanding warehouse environments while reducing wear and maintenance requirements.

RPL201H Application

The RPL201(H) is ideal for large warehouses, distribution centers, and logistics hubs where operators must cover long distances quickly and efficiently. With a suspended foldable platform, reinforced sidearms, and creep speed mode, it delivers comfort and control in both long travel runs and confined areas. Businesses handling high-volume pallet transfers will benefit most from the high-speed configuration.

Datasheet

Description

About the RPL201H

The RPL201(H) takes the performance of the RPL201 to the next level with a high-speed option for faster pallet movement across large facilities.

Combining durability, operator comfort, and advanced safety features, it is engineered to optimize productivity. Proportional electric steering, optimized counterweight, and stabilizing wheels provide smooth handling and load stability. Optional configurations include different fork lengths, cold storage adaptation, and weighing system integration, making it a versatile solution for modern supply chains.

Additional information

Application

, , , , , , ,

Battery Voltage

Charging Type

Fast Charging, Opportunity Charging
Load Capacity

Operator Position

FAQs

Everything you need to know about this equipment before making a decision.

The RPL201(H) supports a maximum load of 2000 kg, suitable for heavy-duty long-distance transport in warehouses and logistics hubs.

The RPL201(H) includes a high-speed configuration, allowing faster pallet transport over long distances while retaining the same 2.0-ton capacity and ergonomic design.

It features automatic speed reduction when cornering, stabilizing wheels, and optimized counterweight placement for smooth and safe driving behavior.

It uses a 24V/205Ah Li-ion battery, maintenance-free and designed for rapid opportunity charging via an external plug, ensuring maximum uptime in multi-shift operations.

Yes. Customers can choose different fork lengths, a cold storage version, or an integrated weighing system, making the truck adaptable to specific operational needs.
